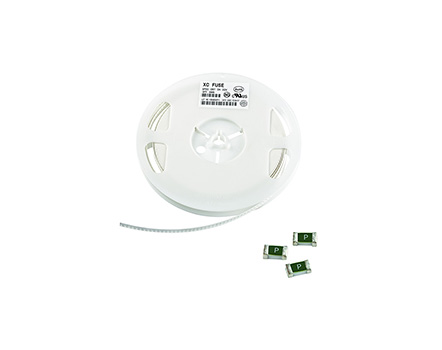

　　The PTC1812 self recovery fuse is a lead-free surface mount self recovery fuse with a volume of 45mm * 32mm patch fuse. Among the self recovery patch fuses, the PTC1812 series has a moderate volume and is suitable for use on many electronic product motherboards, occupying just the right amount of space. The voltage range is 6V-60V, and the current has specifications such as 100MA-4A (please refer to the 1812 series specifications for details).

　　The most commonly used models are PTC1812-010, PTC1812-050, PTC1812-075, PTC1812-260, and PTC1812-300.

　　PTC1812 self recovery fuse can be applied to plug and play protection devices for USB peripheral devices, hard drives, optical drives, motherboards and peripheral devices, PDA/digital cameras, and game console ports.home energy storage system battery

Read recommendations:

ge window air conditioner fuse location

outboard motor thermostat

high voltage fuse types

The following are the relevant issues that self recovery fuses can solve in security equipment.air conditioner fuse box outside

The reason why fuses often burn out.
