| Breaking Capacity | Material | Operating Temperature | Soldering conditions |

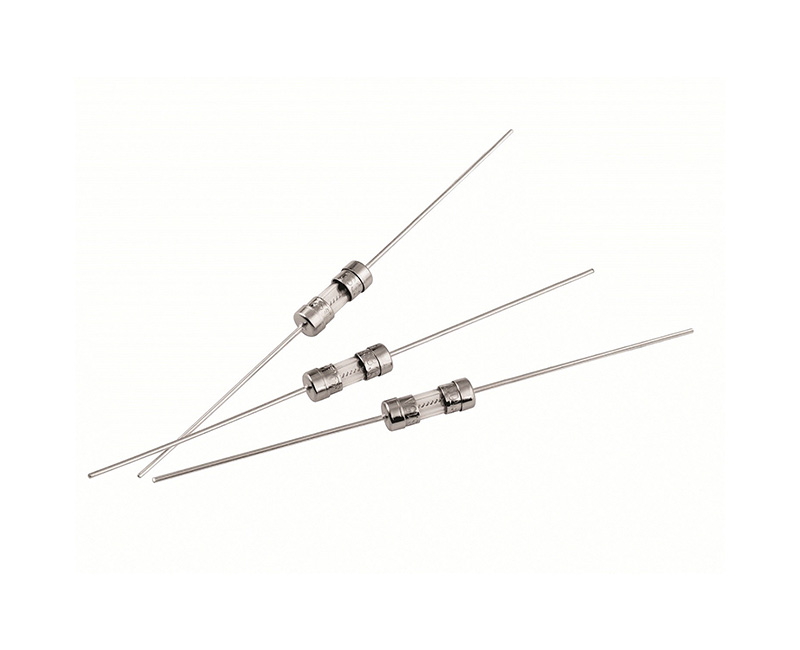

| 50A at 125V/250 AC (200mA-6.3A) | Fuse body - glass tube End cap--nickel plated brass Pigtail--tin plated copper on nickel plated brass cap | -40°C~+125°C | Wave solder: 260°C, ≤5S Hand solder: 360°C, ≤1S |
| Testing current | Blow Time | |
| Min | Max | |
| 100% | 4 hours | - |
| 200% | 1s | 60s |
● Pending
○ Approvals
| Current Rating | Voltage Rating | Norminal Melting I²T(A²sec) For Reference | Approvals |
 | |||
| 200mA | 125V/250V | 0.11 | ● |
| 250mA | 125V/250V | 0.14 | ● |
| 300mA | 125V/250V | 0.20 | ● |
| 315mA | 125V/250V | 0.23 | ● |
| 350mA | 125V/250V | 0.27 | ● |
| 400mA | 125V/250V | 0.38 | ● |
| 500mA | 125V/250V | 0.50 | ● |
| 600mA | 125V/250V | 0.72 | ● |
| 630mA | 125V/250V | 0.9 | ● |
| 750mA | 125V/250V | 1.2 | ● |
| 800mA | 125V/250V | 1.6 | ● |
| 1A | 125V/250V | 2.4 | ● |
| 1.25A | 125V/250V | 3.5 | ● |
| 1.5A | 125V/250V | 4 | ● |
| 2A | 125V/250V | 7.2 | ● |
| 2.5A | 125V/250V | 9.6 | ● |
| 3A | 125V/250V | 16 | ● |
| 3.15A | 125V/250V | 17.8 | ● |
| 3.5A | 125V/250V | 22 | ● |
| 4A | 125V/250V | 28 | ● |
| 5A | 125V/250V | 45 | ● |
| 6A | 125V/250V | 62 | ● |
| 6.3A | 125V/250V | 70 | ● |
