Small volume 0603 series minimum current patch recoverable fuse.resettable fuse 12v

　　The minimum current of the brand 0603 series is 0.02A, and the maximum current can reach 1A. All detailed models of the entire series include ASMD0603-002, ASMD0603-003, ASMD0603-004, ASMD0603-005, ASMD0603-010, ASMD0603-020, ASMD0603-025, ASMD0603-035, ASMD0603-050, ASMD0603-075, and ASMD0603-100. Today we will learn about the minimum current of this series.

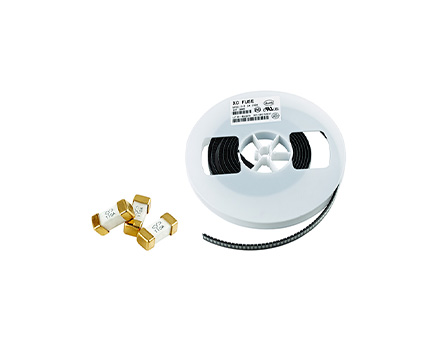

　　The minimum current patch recoverable fuse of the 0603 series corresponds to the model ASMD0603-002, with a silk screen of Y, a rated current of 0.02A, a triggering current of 0.06A, a maximum current of 20A, a maximum voltage of 60V, and a power output of 0.5W during operation. When the current passing through the fuse is 0.2A, the fuse will operate within 1 second. At this moment, the minimum internal resistance of the material number is 12 Ω, and the maximum internal resistance after one hour of welding on the machine is 70 Ω. The normal operating temperature range is -40 ℃~+85 ℃. Welding placement supports two types: reflow soldering and manual soldering. Terminal pad characteristics: terminal board material: tinned nickel copper, terminal pad welding ability: in accordance with EIA specification RS186-9E and ANSI/J-STD-002 category 3. The size specification is 1.6mm * 0.8mm, and the main packaging method used is reel packaging. Due to its small size, one package contains 4000pcs/reel.

　　ASMD0603-002 Chip Recoverable Fuse Features:

　　Compliant with RoHS standards, lead-free, halogen-free, low internal resistance, able to quickly respond to fault currents, ultra small size, compact design saves circuit board space, and is compatible with high-temperature solder.

　　ASMD0603-002 Patch Recoverable Fuses Application Fields:

　　Mobile phones and PDAs, USB peripherals, portable MP3 and media players, IC VCC protection, mobile internet devices (MIDs), and other products.
