Breaking Capacity | Material | Operating Temperature | Soldering conditions |

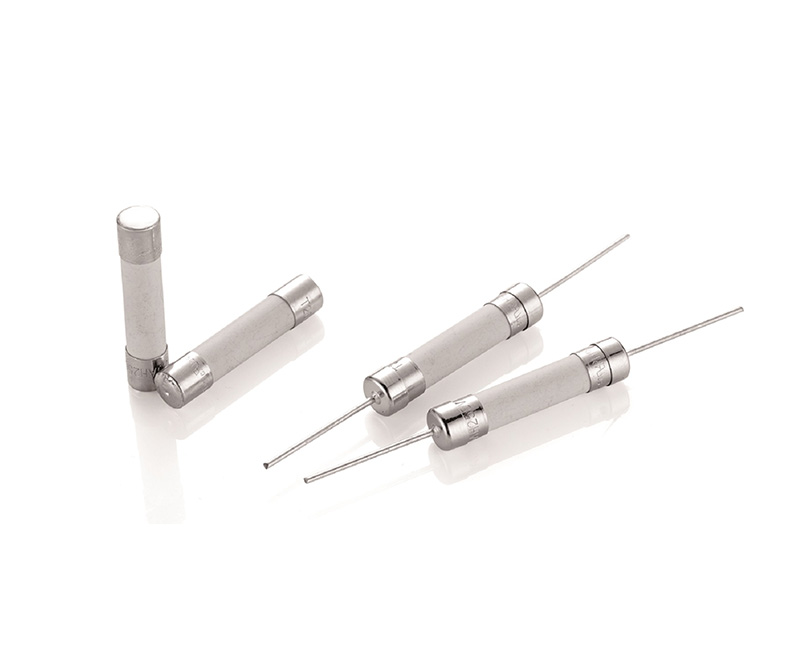

1500A at 125V/250V/300V/350V/400V/450V/500V AC(80mA-30A) | Fuse body - ceramic tube End cap -- nickel plated brass Pigtail -- tin plated copper on nickel plated brass cap | -40°C~+125°C | Wave solder: 260°C, ≤5s Hand solder: 360°C, ≤1s |
Testing current | Blow Time | |
Min | Max | |
150% | 1 hour | - |
210% | 1s | 1800s |
275% | 250ms 750ms 750ms | 20s(250mA-315mA) 80s(400mA-10A) 80s(12A-30A) |
400% | 50ms 95ms 150ms | 2s(250mA-315mA) 3s(400mA-10A) 8s(12A-30A) |
1000% | 10ms 20ms 30ms | 300ms(250mA-315mA) 300ms(400mA-10A) 300ms(12A-30A) |
● Pending
○ Approvals
Current Rating | Voltage Rating | Norminal Melting I²T(A²sec) For Reference | Approvals | ||||||
80mA | 125V/250V/300V/400V/450V/500V | 0.0039 | ○ | ○ | ○ | ● | ● | ○ | ○ |
100mA | 125V/250V/300V/400V/450V/500V | 0.0047 | ○ | ○ | ○ | ● | ● | ○ | ○ |
125mA | 125V/250V/300V/400V/450V/500V | 0.0075 | ○ | ○ | ○ | ● | ● | ○ | ○ |
160mA | 125V/250V/300V/400V/450V/500V | 0.0139 | ○ | ○ | ○ | ● | ● | ○ | ○ |
200mA | 125V/250V/300V/400V/450V/500V | 0.0187 | ○ | ○ | ○ | ● | ● | ○ | ○ |
250mA | 125V/250V/300V/400V/450V/500V | 0.0513 | ○ | ○ | ○ | ● | ● | ○ | ○ |
315mA | 125V/250V/300V/400V/450V/500V | 0.0824 | ○ | ○ | ○ | ● | ● | ○ | ○ |
400mA | 125V/250V/300V/400V/450V/500V | 0.131 | ○ | ○ | ○ | ● | ● | ○ | ○ |
500mA | 125V/250V/300V/400V/450V/500V | 0.210 | ○ | ○ | ○ | ● | ● | ○ | ○ |
630mA | 125V/250V/300V/400V/450V/500V | 0.777 | ○ | ○ | ○ | ● | ● | ○ | ○ |
800mA | 125V/250V/300V/400V/450V/500V | 1.392 | ○ | ○ | ○ | ● | ● | ○ | ○ |
1A | 125V/250V/300V/400V/450V/500V | 2.243 | ○ | ○ | ● | ● | ● | ○ | ● |
1.25A | 125V/250V/300V/400V/450V/500V | 3.204 | ○ | ○ | ● | ● | ● | ○ | ● |
1.6A | 125V/250V/300V/400V/450V/500V | 5.244 | ○ | ○ | ● | ● | ● | ○ | ● |
2A | 125V/250V/300V/400V/450V/500V | 10.829 | ○ | ○ | ● | ● | ● | ○ | ● |
2.5A | 125V/250V/300V/400V/450V/500V | 21.995 | ○ | ○ | ● | ● | ● | ○ | ● |
3.15A | 125V/250V/300V/400V/450V/500V | 34.456 | ○ | ○ | ● | ● | ● | ○ | ● |
4A | 125V/250V/300V/400V/450V/500V | 48.859 | ○ | ○ | ● | ● | ● | ○ | ● |
5A | 125V/250V/300V/400V/450V/500V | 75.687 | ○ | ○ | ● | ● | ● | ○ | ● |
6.3A | 125V/250V/300V/400V/450V/500V | 112.15 | ○ | ○ | ● | ● | ● | ○ | ● |
8A | 125V/250V/300V/400V/450V/500V | 184.96 | ○ | ○ | ● | ● | ● | ○ | ● |
10A | 125V/250V/300V/400V/450V/500V | 316.83 | ○ | ○ | ● | ● | ● | ○ | ● |
12A | 125V/250V/300V/400V/450V/500V | 600.75 | ● | ● | ● | ||||
12.5A | 125V/250V/300V/400V/450V/500V | 644.65 | ○ | ○ | ● | ● | ● | ○ | ● |
15A | 125V/250V/300V/400V/450V/500V | 954.73 | ○ | ○ | ● | ● | ● | ○ | ● |
16A | 125V/250V/300V/400V/450V/500V | 1215.22 | ○ | ○ | ● | ● | ● | ○ | ● |
20A | 125V/250V/300V/400V/450V/500V | 2088.47 | ○ | ○ | ● | ● | ● | ○ | ● |
25A | 125V/250V/300V/400V/450V/500V | 3599.86 | ○ | ○ | ● | ● | ● | ○ | ● |
30A | 125V/250V/300V/400V/450V/500V | 9389.59 | ○ | ○ | ● | ● | ● | ○ | ● |
