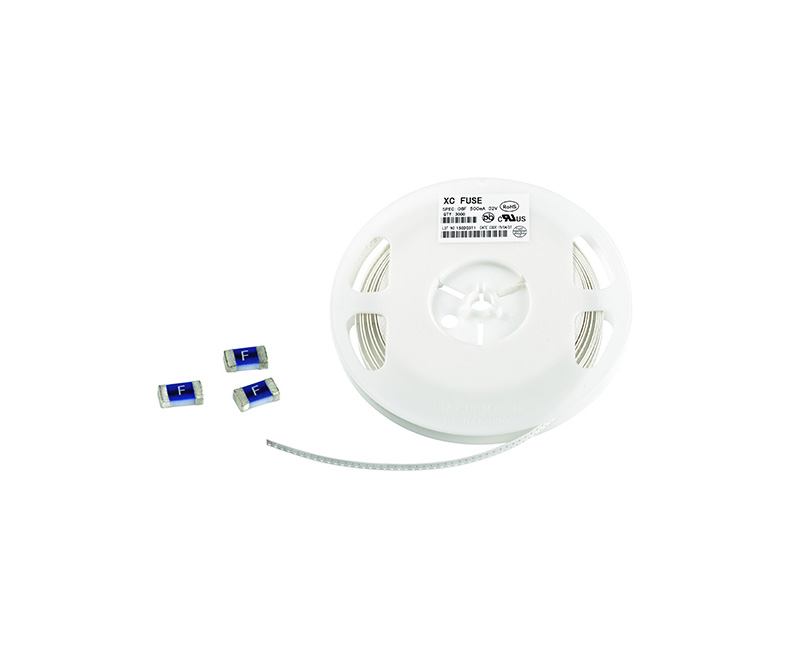

SMD Fuses

06F

Parameter

Breaking CapacityMaterialOperating TemperatureSoldering conditions
50A at 32V DC(250mA-5A)

Substrate - Ceramic

Termination-Sliver over-plated with nickel and tin

Element--Silver

-40℃~+125℃

Wave solder: 260℃, ≤5S

Hand solder: 360℃, ≤1S

Electrical Characteristics

Amper Rating
Testing currentBlow Time
MinMax

250mA~5A

100%4 hours-
250mA~5A200%-60s

Approvals (○ Pending ● Approvals)

● Pending

○ Approvals

Current RatingVoltage RatingMarking
Norminal Melting I²T(A²sec) For ReferenceApprovals
128
250mA32VD0.0004
375mA32VE0.0009
500mA32VF0.002
750mA32VG0.009
1A32VH0.010
1.25A32VJ0.013
1.5A32VK0.032
2A32VN0.049
2.5A32VO0.065
3A32VP0.07
3.5A32VR0.12
4A32VS0.24
5A32VT0.70
