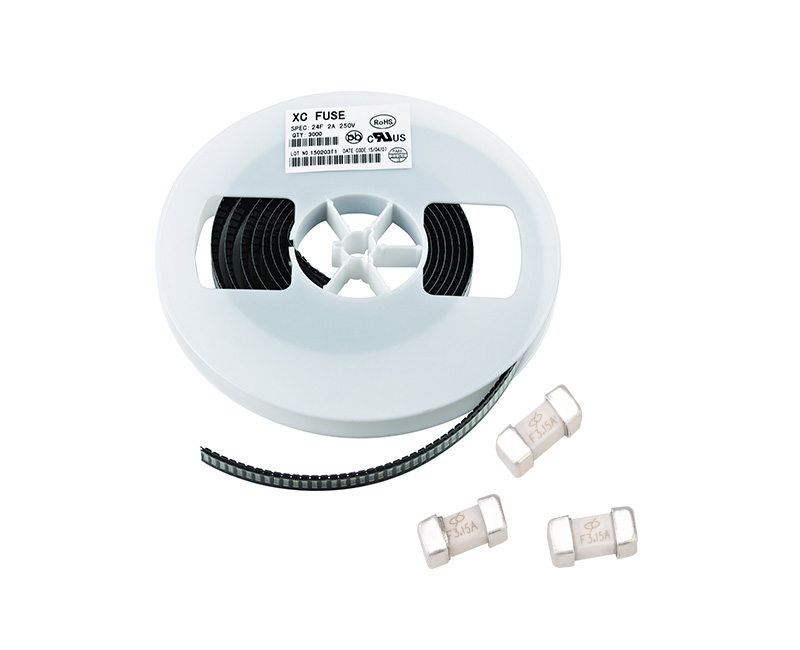

24T_SMD Fuses_Fuse_Products_XC Electronics(Shenzhen)Corp.,LTD

Breaking Capacity	Material	Operating Temperature	Soldering conditions
UL 50A at 125V/250V AC(250mA-10A)	Fuse body -- ceramic tube End -- Silver plated brass	-40°C~+125°C	Wave solder: 260°C, ≤5s Hand solder: 360°C, ≤1s
UL 50A at 125V DC(250mA-10A)
UL 25A at 250V DC(250mA-10A)
VDE 100A at 250V DC(250mA-6.3A)

Current Rating	Voltage Rating	Norminal Melting I²T(A²sec) For Reference	Approvals
Current Rating	Voltage Rating	Norminal Melting I²T(A²sec) For Reference
250mA	125V/250V	0.089	○	●	●	●	○	●
300mA	125V/250V	0.125				●	○
315mA	125V/250V	0.138	○	●	●	●	○	●
350mA	125V/250V	0.172				●	○
400mA	125V/250V	0.412	○	●	●	●	○	●
500mA	125V/250V	0.688	○	●	●	●	○	●
600mA	125V/250V	0.978				●	○
630mA	125V/250V	1.467	○	●	●	●	○	●
750mA	125V/250V	2.081				●	○
800mA	125V/250V	2.367	○	●	●	●	○	●
1A	125V/250V	3.804	○	●	●	●	○	●
1.25A	125V/250V	5.558	○	●	●	●	○	●
1.5A	125V/250V	6.932				●	○
1.6A	125V/250V	8.389	○	●	●	●	○	●
2A	125V/250V	10.13	○	●	●	●	○	●
2.5A	125V/250V	15.82	○	●	●	●	○	●
3A	125V/250V	21.49				●	○
3.15A	125V/250V	25.78	○	●	●	●	○	●
4A	125V/250V	38.54	○	●	●	●	○	●
5A	125V/250V	49.15	○	●	●	●	○	●
6A	125V/250V	77.67				●	○
6.3A	125V/250V	89.35	○	●	●	●	○	●
7A	125V/250V	114.31				●	○
8A	125V/250V	178.23	○	○	○	●	○	○
10A	125V/250V	286.84	○	○	○	●	○	○
12A	125V/250V	293.70	○	○	○	○	○	○
15A	125V/250V	302.11	○	○	○	○	○	○
20A	125V/250V	360.12	○	○	○	○	○	○
