　　Chip fuses are the most commonly used fuses. As a fuse manufacturer, we also have our own brand of chip fuses. So, what are the specifications and sizes of our company's chip fuses?

　　What are the specifications and dimensions of patch fuses—— Chip fuses mainly come in packages such as 0603, 0805, 1206, 1210, 1812, 2016/2018, 2920, etc. They are all named and classified according to volume, and each series has many other specifications and models based on different currents and voltages.

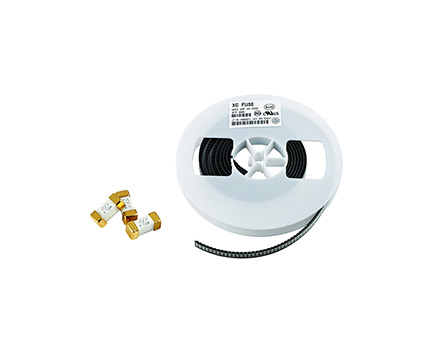

　　Surface Mount Fuses

　　What are the specifications and dimensions of patch fuses—— Among them, the size of the 0603 series patch fuse is 1.6 * 0.8mm; The size of the 0805 series patch fuse is 2.0 * 1.2mm; The size of the 1206 series patch fuse is 3.2 * 1.6mm; The size of the 1210 series patch fuse is 3.2 * 2.5mm; The size of the 1812 series patch fuse is 4.5 * 3.2mm; The size of the 2016/2018 series patch fuse is 5.0 * 5.0mm; The size of the 2920 series patch fuse is 7.5 * 5.5mm.
