Blade Fuses

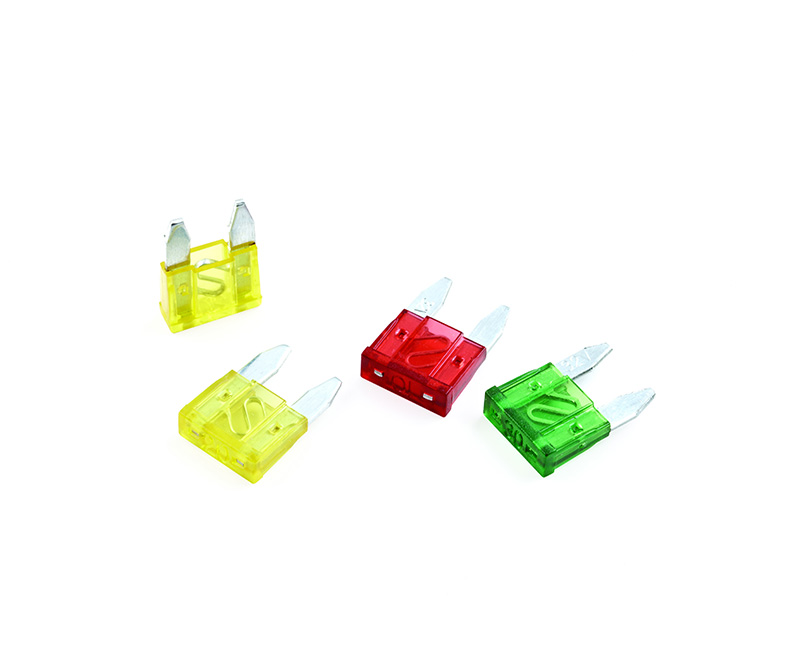

Designed and produced by XC Electronics, the blade fuses for autornotive industry is mainly used to protect equipment circuit lower than 32V.

● Design standard: Automotive industry Autofuse standard of Republic of China, OC/T420-2004

● Product Classification:

A: Mini type (F type) blade fuse (fast acting)

B: Medium type (C type) blade fuse (fast acting)

C: Maximum type (E type) blade fuse (slow-blow)

● Materials: PC resistance burnt material/ alloy terminal electrode.

● Color-coding: Blade fuses are color-coded for easy amperage identification.

● Application: Suitable for auto lighting, auto guard against theft, UPS etc. Also applied to low voltage electronic products, little transformer, electric toy, charger and so on.

Functional Characteristics

Testing currentBlow Time
MinMax
110%100 hours-
135%0.75 s1800 s
200%0.15 s5 s
350%0.08 s0.25 s

Reference Information (○ Pending ● Approvals)

● Pending

○ Approvals

TypeCurrent RatingVoltage RatingColourCold Resistance mΩMinimum Heat of Fusion I²t(A²Sec)Approvals
2
C2000301Z232Gray556.2
C3000301Z332Purple349.4
C4000301Z

4

32Pink2417
C5000301Z532Tan1825
C7500301Z7.532Coffee1168
C0010301Z1032Red7.393
C0015301Z1532Blue4.5270
C0020301Z2032Yellow3.2380
C0025301Z2532Natural2.3625
C0030301Z3032Green1.81130
