Blade Fuses

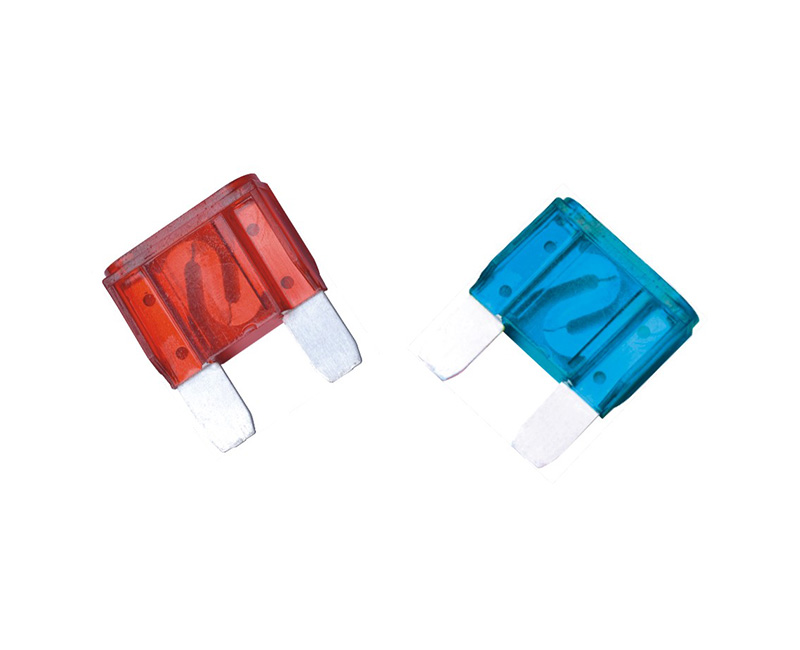

Designed and produced by XC Electronics, the blade fuses for autornotive industry is mainly used to protect equipment circuit lower than 32V.

● Design standard: Automotive industry Autofuse standard of Republic of China, OC/T420-2004

● Product Classification:

A: Mini type (F type) blade fuse (fast acting)

B: Medium type (C type) blade fuse (fast acting)

C: Maximum type (E type) blade fuse (slow-blow)

● Materials: PC resistance burnt material/ alloy terminal electrode.

● Color-coding: Blade fuses are color-coded for easy amperage identification.

● Application: Suitable for auto lighting, auto guard against theft, UPS etc. Also applied to low voltage electronic products, little transformer, electric toy, charger and so on.


Functional Characteristics

Testing currentBlow Time  Min/Max(s)
20A30A40A50A60A70A80A
135%

1800

60

1800

60

1800

60

1800

60

1800

60

1800

60

1800

60

200%

20

4

30

6

40

8

50

10

60

15

60

4

60

4

300%

2

0.7

4

1

5

1.4

6

1.7

7

2

2

0.2

2

0.2

Reference Information (○ Pending ● Approvals)

● Pending

○ Approvals

TypeCurrent RatingVoltage RatingColourCold Resistance mΩMinimum Heat of Fusion I²t(A²Sec)Approvals
2
C0020303Z2032Yellow3.11100
C0030303Z3032Green24070
C0040303Z4032Amber1.48450
C0050303Z5032Red1.111300
C0060303Z6032Blue0.8915300
C0070303Z7032Tan0.696900
C0080303Z8032Purple0.598800
