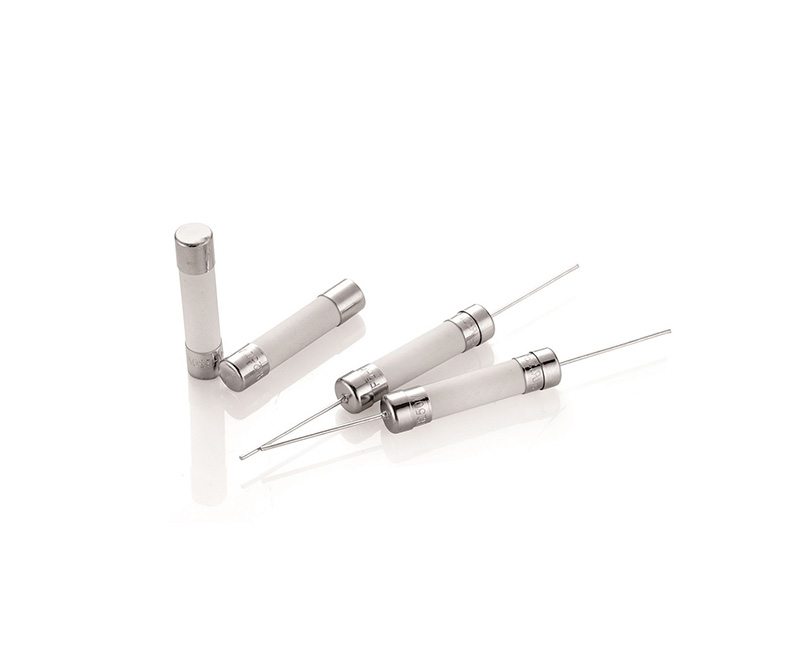

6C_Cartridge Fuses_Fuse_Products_XC Electronics(Shenzhen)Corp.,LTD

Parameter

Breaking Capacity

Material

Operating Temperature

Soldering conditions

1500A at 125V/250V/300V/350V/400V/450V/500V AC(80mA-30A)

Fuse body - ceramic tube

End cap -- nickel plated brass

Pigtail -- tin plated copper on nickel plated brass cap

-40°C~+125°C

Wave solder: 260°C, ≤5s

Hand solder: 360°C, ≤1s

Electrical Characteristics

Testing current	Blow Time
Testing current	Min	Max
150%	1 hour	-
210%	0.2s	1800s
275%	10ms 10ms 40ms	2s(250mA-6.3A) 3s(8A-10A) 20s(12A-30A)
400%	3ms 10ms 10ms	600ms(250mA-6.3A) 800ms(8A-10A) 1s(12A-30A)
1000%	-	30ms(250mA-6.3A) 40ms(8A-12A) 50ms(12.5A-30A)

● Pending ○ Approvals

Current Rating	Voltage Rating	Norminal Melting I²T(A²sec) For Reference	Approvals
Current Rating	Voltage Rating	Norminal Melting I²T(A²sec) For Reference
80mA	125V/250V/300V/400V/450V/500V	0.0032	○	○	○	●	●	○	○
100mA	125V/250V/300V/400V/450V/500V	0.0041	○	○	○	●	●	○	○
125mA	125V/250V/300V/400V/450V/500V	0.0065	○	○	○	●	●	○	○
160mA	125V/250V/300V/400V/450V/500V	0.0129	○	○	○	●	●	○	○
200mA	125V/250V/300V/400V/450V/500V	0.0178	○	○	○	●	●	○	○
250mA	125V/250V/300V/400V/450V/500V	0.0324	○	○	○	●	●	○	○
315mA	125V/250V/300V/400V/450V/500V	0.0515	○	○	○	●	●	○	○
400mA	125V/250V/300V/400V/450V/500V	0.0868	○	○	○	●	●	○	○
500mA	125V/250V/300V/400V/450V/500V	0.131	○	○	○	●	●	○	○
630mA	125V/250V/300V/400V/450V/500V	0.208	○	○	○	●	●	○	○
800mA	125V/250V/300V/400V/450V/500V	0.647	○	○	○	●	●	○	○
1A	125V/250V/300V/400V/450V/500V	1.005	○	○	●	●	●	○	●
1.25A	125V/250V/300V/400V/450V/500V	1.579	○	○	●	●	●	○	●
1.6A	125V/250V/300V/400V/450V/500V	2.855	○	○	●	●	●	○	●
2A	125V/250V/300V/400V/450V/500V	5.261	○	○	●	●	●	○	●
2.5A	125V/250V/300V/400V/450V/500V	8.213	○	○	●	●	●	○	●
3.15A	125V/250V/300V/400V/450V/500V	11.488	○	○	●	●	●	○	●
4A	125V/250V/300V/400V/450V/500V	23.075	○	○	●	●	●	○	●
5A	125V/250V/300V/400V/450V/500V	41.73	○	○	●	●	●	○	●
6.3A	125V/250V/300V/400V/450V/500V	61.09	○	○	●	●	●	○	●
8A	125V/250V/300V/400V/450V/500V	125.78	○	○	●	●	●	○	●
10A	125V/250V/300V/400V/450V/500V	265.34	○	○	●	●	●	○	●
12A	125V/250V/300V/400V/450V/500V	453.52				●	●		●
12.5A	125V/250V/300V/400V/450V/500V	463.63	○	○	●	●	●	○	●
15A	125V/250V/300V/400V/450V/500V	589.88	○	○	●	●	●	○	●
16A	125V/250V/300V/400V/450V/500V	814.33	○	○	●	●	●	○	●
20A	125V/250V/300V/400V/450V/500V	1648.35	○	○	●	●	●	○	●
25A	125V/250V/300V/400V/450V/500V	2590.68	○	○	●	●	●	○	●
30A	125V/250V/300V/400V/450V/500V	4729.21	○	○	●	●	●	○	●
