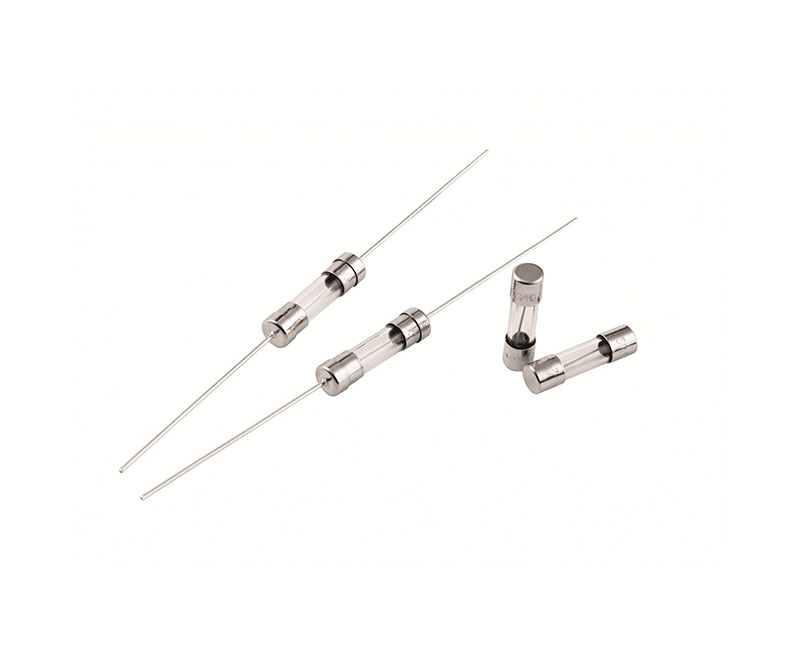

5G_Cartridge Fuses_Fuse_Products_XC Electronics(Shenzhen)Corp.,LTD

Breaking Capacity	Material	Operating Temperature	Soldering conditions
10,000A at 125V AC(250mA-20A)	Fuse body - glass tube End cap--nickel plated brass Pigtail--tin plated copper on nickel plated brass cap	-40°C~+125°C	Wave solder: 260°C, ≤5S Hand solder: 360°C, <1S
35A at 250V AC (0-1A)
100A at 250V AC (1.1A-3.5A)
200A at 250V AC (3.6A-20A)

Current Rating	Voltage Rating	Norminal Melting I²T(A²sec) For Reference	Approvals
Current Rating	Voltage Rating	Norminal Melting I²T(A²sec) For Reference
250mA	125V/250V	0.25	●		●
300mA	125V/250V	0.27	●		●
315mA	125V/250V	0.30	●		●
350mA	125V/250V	0.32	●		●
400mA	125V/250V	0.45	●		●
500mA	125V/250V	0.48	●		●
750mA	125V/250V	0.6	●		●
800mA	125V/250V	1.0	●		●
1A	125V/250V	1.8	●		●
1.25A	125V/250V	2.2	●		●
1.5A	125V/250V	3.1	●		●
1.6A	125V/250V	3.5	●		●
2A	125V/250V	5.0	●		●
2.5A	125V/250V	7.5	●		●
3A	125V/250V	12.5	●		●
3.15A	125V/250V	14.2	●		●
3.5A	125V/250V	15	●		●
4A	125V/250V	30	●		●
5A	125V/250V	42	●		●
6A	125V/250V	60	●		●
6.3A	125V/250V	68	●		●
7A	125V/250V	82	●		●
8A	125V/250V	95	●		●
10A	125V/250V	107	●		●
12A	125V/250V	115	●	●	●
15A	125V/250V	180	●	●	●
20A	125V/250V	255		●
