Breaking Capacity | Material | Operating Temperature | Soldering conditions |

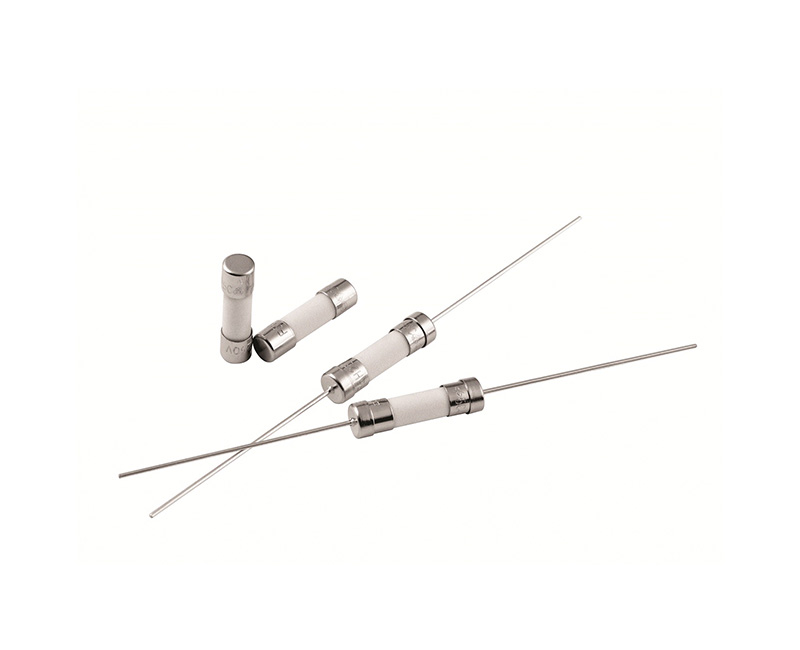

1500A at 250V AC(1A-20A) | Fuse body - ceramic tube End cap--nickelplated brass Pigtail--tin plated copper on nickel plated brass cap | -40°C~+125°C | Wave solder: 260°C, ≤5S Hand solder: 360°C, ≤1S |
Testing current | Blow Time | |
Min | Max | |
150% | 1 hour | - |
210% | 100ms | 30min |
275% | 10 ms(1A~6.3A) 40 ms(8A~16A) | 2S(250ms~4A) 3S(5A~6.3A) 20S(8A~20A) |
400% | 3s 10ms | 300 ms(250mA~4A) 1S(8A~20A) |
1000% | - | 20 ms(250mA~6.3A) 30 ms(8A~10A) 40 ms(12.5A~20A) |
● Pending
○ Approvals
Current Rating | Voltage Rating | Norminal Melting I²T(A²sec) For Reference | Approvals | ||||||
250mA | 250V | 0.021 | ● | ● | ○ | ||||
315mA | 250V | 0.033 | ● | ● | ○ | ||||
400mA | 250V | 0.052 | ● | ● | ○ | ||||
500mA | 250V | 0.112 | ● | ● | ○ | ||||
630mA | 250V | 0.175 | ● | ● | ○ | ||||
800mA | 250V | 0.351 | ● | ● | ○ | ||||
1A | 250V | 0.566 | ● | ● | ● | ● | ● | ○ | |
1.25A | 250V | 0.972 | ● | ● | ● | ● | ● | ○ | |
1.6A | 250V | 1.592 | ● | ● | ● | ● | ● | ○ | |
2A | 250V | 3.910 | ● | ● | ● | ● | ● | ○ | |
2.5A | 250V | 6.908 | ● | ● | ● | ● | ● | ○ | |
3.15A | 250V | 14.89 | ● | ● | ● | ● | ● | ○ | |
4A | 250V | 22.97 | ● | ● | ● | ● | ● | ○ | |
5A | 250V | 42.51 | ● | ● | ● | ● | ● | ○ | |
6.3A | 250V | 69.52 | ● | ● | ● | ● | ● | ○ | |
8A | 250V | 126.92 | ● | ● | ● | ● | ● | ○ | |
10A | 250V | 237.11 | ● | ● | ● | ● | ● | ○ | |
12A | 250V | 370.15 | ● | ● | |||||
12.5A | 250V | 380.17 | ○ | ● | ● | ● | ○ | ● | |
15A | 250V | 556.82 | ● | ● | ○ | ● | |||
16A | 250V | 639.69 | ○ | ● | ● | ● | ○ | ● | |
20A | 250V | 1196.98 | ○ | ● | ● | ● | ○ | ● |
