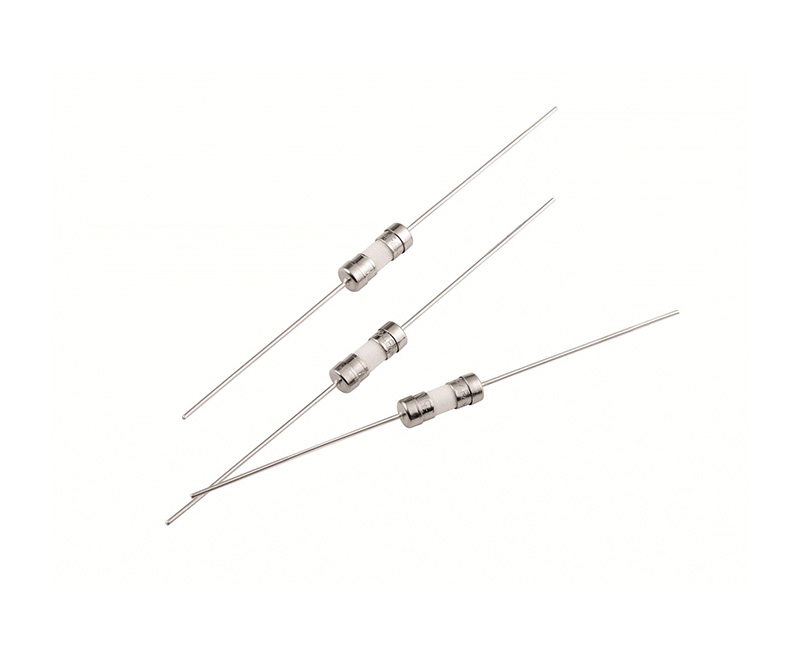

4F_Cartridge Fuses_Fuse_Products_XC Electronics(Shenzhen)Corp.,LTD

Breaking Capacity

Material

Operating Temperature

Soldering conditions

VDE 35A or 10ln whichever is greater (500mA-10A)

Fuse body - ceramic tube

End cap--nickelplated brass

Pigtail--tin plated copper on nickel plated brass cap

-40°C~+125°C

Wave solder: 260°C, <5S

Hand solder: 360°C, <1S

UL 50A at 125V/250V/300V AC(200mA-10A)

Current Rating	Voltage Rating	Norminal Melting I²T(A²sec) For Reference	Approvals
Current Rating	Voltage Rating	Norminal Melting I²T(A²sec) For Reference
200mA	125V/250V/300V/350V	0.12			●
250mA	125V/250V/300V/350V	0.14			●
300mA	125V/250V/300V/350V	0.20			●
315mA	125V/250V/300V/350V	0.23			●
350mA	125V/250V/300V/350V	0.27			●
400mA	125V/250V/300V/350V	0.38			●
500mA	125V/250V/300V/350V	0.50	●	●	●	●	●
600mA	125V/250V/300V/350V	0.72			●
630mA	125V/250V/300V/350V	0.9			●
750mA	125V/250V/300V/350V	1.2			●
800mA	125V/250V/300V/350V	1.6			●
1A	125V/250V/300V/350V	2.4	●	●	●	●	●
1.25A	125V/250V/300V/350V	3.5	●	●	●	●	●
1.5A	125V/250V/300V/350V	4			●		●
1.6A	125V/250V/300V/350V	7.2	●	●	●	●	●
2A	125V/250V/300V/350V	9.6	●	●	●	●	●
2.5A	125V/250V/300V/350V	16	●	●	●	●	●
3A	125V/250V/300V/350V	17.8			●		●
3.15A	125V/250V/300V/350V	22	●	●	●	●	●
3.5A	125V/250V/300V/350V	28			●		●
4A	125V/250V/300V/350V	45	●	●	●	●	●
5A	125V/250V/300V/350V	62	●	●	●	●	●
6A	125V/250V/300V/350V	70			●
6.3A	125V/250V/300V/350V	72	●	●	●	○	●
7A	125V/250V/300V/350V	88			○
8A	125V/250V/300V/350V	110	○	●	○	○	●	●
10A	125V/250V/300V/350V	144	○	●	○	○	●	●
