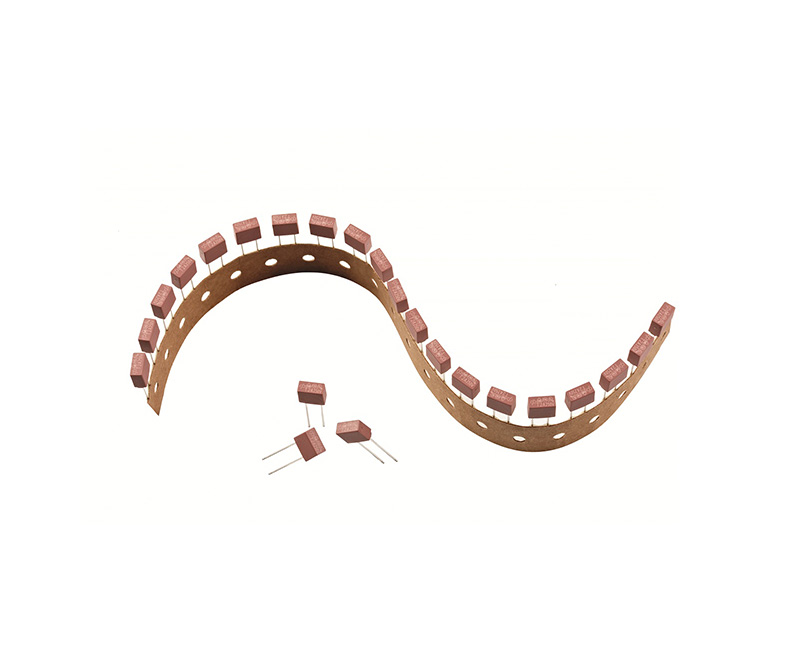

5TE_Axial Radial Thru Hole Fuses_Fuse_Products_XC Electronics(Shenzhen)Corp.,LTD

Breaking Capacity

Material

Operating Temperature

Soldering conditions

VDE 100A at 250V/300V AC(125mA-10A)

Fuse body - Plastic

Element -- Alloy

Pigtail -- tin plated copper

-40°C~+125°C

Wave solder: 260°C, ≤5s

Hand solder: 360°C, ≤1s

UL 100A at 125V/250V/300V/350 AC(80mA-20A)

Current Rating	Voltage Rating	Norminal Melting I²T(A²sec) For Reference	Approvals
Current Rating	Voltage Rating	Norminal Melting I²T(A²sec) For Reference
80mA	125V/250V/300V/350V	0.026			●
100mA	125V/250V/300V/350V	0.035			●
125mA	125V/250V/300V/350V	0.056	●	●	●		●
160mA	125V/250V/300V/350V	0.092	●	●	●		●
200mA	125V/250V/300V/350V	0.163	●	●	●		●
250mA	125V/250V/300V/350V	0.255	●	●	●		●
300mA	125V/250V/300V/350V	0.421			●
315mA	125V/250V/300V/350V	0.603	●	●	●		●
350mA	125V/250V/300V/350V	0.615			●
400mA	125V/250V/300V/350V	0.679	●	●	●		●
500mA	125V/250V/300V/350V	1.179	●	●	●		●
600mA	125V/250V/300V/350V	1.428			●
630mA	125V/250V/300V/350V	1.831	●	●	●		●
750mA	125V/250V/300V/350V	2.517			●
800mA	125V/250V/300V/350V	3.608	●	●	●		●
1A	125V/250V/300V/350V	7.309	●	●	●	●	●
1.25A	125V/250V/300V/350V	12.77	●	●	●	●	●
1.5A	125V/250V/300V/350V	17.29			●	●
1.6A	125V/250V/300V/350V	20.64	●	●	●	●	●
2A	125V/250V/300V/350V	29.51	●	●	●	●	●
2.5	125V/250V/300V/350V	44.25	●	●	●	●	●
3A	125V/250V/300V/350V	52.36			●	●
3.15A	125V/250V/300V/350V	69.55	●	●	●	●	●
4A	125V/250V/300V/350V	112.20	●	●	●	●	●
5A	125V/250V/300V/350V	190.23	●	●	●	●	●
6A	125V/250V/300V/350V	235.15			●	●
6.3A	125V/250V/300V/350V	262.11	●	●	●	●	●
7A	125V/250V/300V/350V	315.95			●	●
8A	125V/250V/300V/350V	385.44	●	●	●	●	●
10A	125V/250V/300V/350V	609.78	●	●	●	●	●
12A	125V/250V/300V/350V	879.61			●	●
12.5A	125V/250V/300V/350V	956.35			●	●
15A	125V/250V/300V/350V	1366.02			●	●
20A	125V/250V/300V/350V	1910.70			●
