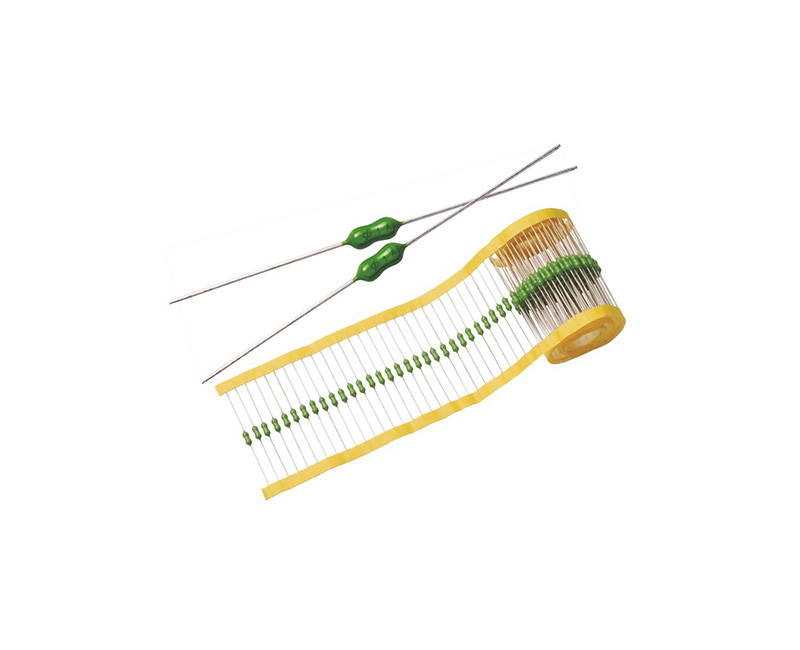

2F_Axial Radial Thru Hole Fuses_Fuse_Products_XC Electronics(Shenzhen)Corp.,LTD

Breaking Capacity

Material

Operating Temperature

Soldering conditions

50A at 125V AC(250mA-10A)

Fuse body - EPOXY COATING

End cap--nickelplated brass

Pigtail--tin plated copper on nickel plated brass cap

-40°C~+125°C

Wave solder: 260°C, ≤5S

Hand solder: 360°C, <1S

25A at 250V AC(250mA-10A)

Current Rating	Voltage Rating	Norminal Melting I²T(A²sec) For Reference	Approvals
Current Rating	Voltage Rating	Norminal Melting I²T(A²sec) For Reference
250mA	125V/250V	0.10	●	●	●	●		●
300mA	125V/250V	0.12			●	●
315mA	125V/250V	0.14	●	●	●	●		●
350mA	125V/250V	0.18			●	●
400mA	125V/250V	0.23	●	●	●	●		●
500mA	125V/250V	0.38	●	●	●	●		●
600mA	125V/250V	0.41			●	●
630mA	125V/250V	0.42	●	●	●	●		●
750mA	125V/250V	0.47			●	●
800mA	125V/250V	0.53	●	●	●	●		●
1A	125V/250V	0.65	●	●	●	●		●
1.25A	125V/250V	1.25	●	●	●	●	●	●
1.5A	125V/250V	2.2			●	●	●
1.6A	125V/250V	4.1	●	●	●	●	●	●
2A	125V/250V	7.2	●	●	●	●	●	●
2.5A	125V/250V	14	●	●	●	●	●	●
3A	125V/250V	17			●	●	●
3.15A	125V/250V	18	●	●	●	●	●	●
3.5A	125V/250V	19			●	●	●
4A	125V/250V	22	●	●	●	●	●	●
5A	125V/250V	25		●	●	●	●	●	●
6A	125V/250V	28.8			●	●
6.3A	125V/250V	31.8	○	●	●	●		●	●
7A	125V/250V	39.2			●	●
8A	125V/250V	51.2	○	○	●	●		○
10A	125V/250V	80	○	○	●	●		○
